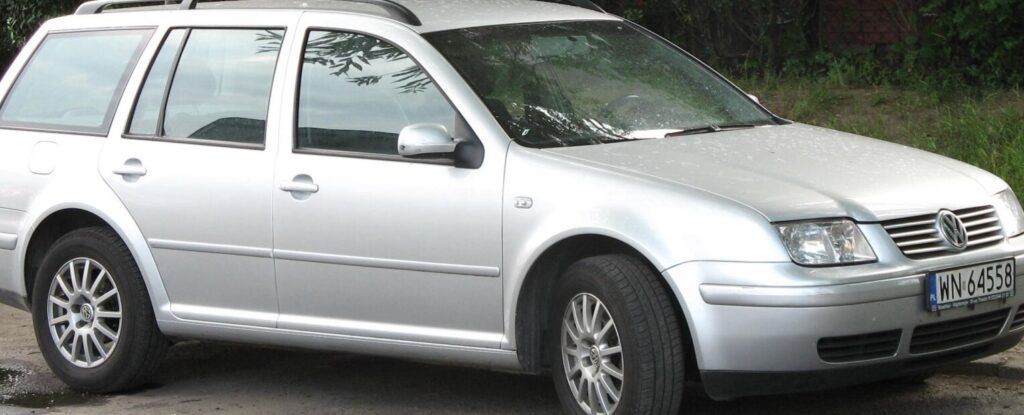

The Volkswagen Bora Variant 1.9 TDI (115 hp) was a practical and fuel-efficient station wagon offered as part of the Bora (Jetta in North America) lineup between 1999 and 2000. Built on the Volkswagen Group’s A4 platform (1J6 chassis code), the Bora Variant aimed to provide a more versatile alternative to the sedan, appealing to families and those needing increased cargo capacity. This particular variant, powered by the 1.9-liter turbocharged diesel engine, represented a mid-range offering within the Bora lineup, balancing performance with economy. It was primarily sold in the European market, where station wagons held a stronger appeal than in the United States.
Technical Specifications
| Brand | Volkswagen |
| Model | Bora |
| Generation | Bora Variant (1J6) |
| Type (Engine) | 1.9 TDI (115 Hp) |
| Start of production | 1999 |
| End of production | 2000 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7 l/100 km (33.6 US mpg, 40.4 UK mpg, 14.3 km/l) |
| Fuel consumption (extra urban) | 4.4 l/100 km (53.5 US mpg, 64.2 UK mpg, 22.7 km/l) |
| Fuel consumption (combined) | 5.1 l/100 km (46.1 US mpg, 55.4 UK mpg, 19.6 km/l) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 11.1 sec |
| Acceleration 0 – 62 mph | 11.1 sec |
| Acceleration 0 – 60 mph | 10.5 sec |
| Maximum speed | 195 km/h (121.17 mph) |
| Weight-to-power ratio | 11.8 kg/Hp, 84.6 Hp/tonne |
| Weight-to-torque ratio | 4.4 kg/Nm, 227.9 Nm/tonne |
| Power | 115 Hp @ 4000 rpm |
| Power per litre | 60.7 Hp/l |
| Torque | 310 Nm @ 1900 rpm (228.64 lb.-ft. @ 1900 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | AJM, AUY |
| Engine displacement | 1896 cm3 (115.7 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 79.5 mm (3.13 in.) |
| Piston Stroke | 95.5 mm (3.76 in.) |
| Compression ratio | 18:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Pump-nozzle (Unit Injector) |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | OHC |
| Engine oil capacity | 4 l (4.23 US qt | 3.52 UK qt) |
| Coolant | 6 l (6.34 US qt | 5.28 UK qt) |
| Kerb Weight | 1360 kg (2998.29 lbs.) |
| Max. weight | 1880 kg (4144.69 lbs.) |
| Max load | 520 kg (1146.4 lbs.) |
| Trunk (boot) space – minimum | 460 l (16.24 cu. ft.) |
| Trunk (boot) space – maximum | 1470 l (51.91 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4409 mm (173.58 in.) |
| Width | 1735 mm (68.31 in.) |
| Height | 1485 mm (58.46 in.) |
| Wheelbase | 2515 mm (99.02 in.) |
| Front track | 1513 mm (59.57 in.) |
| Rear (Back) track | 1494 mm (58.82 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/65 R15 |
| Wheel rims size | 6J x 15 |
Powertrain & Engine Architecture
The heart of the Bora Variant 1.9 TDI was the 1.9-liter (1896 cc) inline-four cylinder diesel engine. Engine codes AJM and AUY were commonly found in this variant. This engine was a member of Volkswagen’s well-regarded TDI (Turbocharged Direct Injection) family. It utilized a pump-nozzle (unit injector) fuel injection system, a technology that allowed for precise fuel delivery and contributed to the engine’s efficiency and relatively low emissions for its time. The engine featured a single overhead camshaft (OHC) operating two valves per cylinder. A turbocharger with an intercooler boosted power output to 115 horsepower at 4000 rpm and 228.64 lb-ft of torque at a low 1900 rpm. This torque curve provided strong pulling power, especially useful for a wagon-bodied vehicle. The engine’s robust construction and relatively simple design contributed to its longevity. The 5-speed manual transmission was the standard offering, providing a balance between fuel economy and drivability.
Driving Characteristics
The 1.9 TDI engine in the Bora Variant delivered a practical and usable driving experience. While not a performance-oriented variant, the 310 Nm (228.64 lb-ft) of torque provided ample power for everyday driving and hauling loads. Acceleration from 0-60 mph took around 10.5 seconds, and top speed was approximately 121 mph. The manual transmission’s gear ratios were geared towards fuel efficiency, but still allowed for responsive acceleration when needed. Compared to the higher-output TDI variants (like the 130 hp version), the 115 hp model felt less urgent, but it offered significantly better fuel economy. The suspension, tuned for comfort, provided a reasonably smooth ride, although it wasn’t particularly sporty. The front-wheel-drive configuration offered predictable handling, but lacked the all-weather capability of a four-wheel-drive system.
Equipment & Trim Levels
The Bora Variant 1.9 TDI typically came with a reasonable level of standard equipment. This included power windows, central locking, power steering, and an ABS anti-lock braking system. Interior upholstery was typically cloth, with a functional and durable design. Optional extras included alloy wheels, a sunroof, air conditioning, and a radio/cassette player (or CD player depending on the year). Trim levels varied by market, but generally, the 1.9 TDI sat in the mid-range of the Bora Variant lineup, offering a good balance of features and affordability.
Chassis & Braking
The Bora Variant utilized an independent McPherson strut suspension at the front, providing good wheel control and ride comfort. The rear suspension was a semi-independent torsion beam setup, which was cost-effective and provided adequate handling characteristics for a family wagon. Brakes consisted of ventilated discs at the front and solid discs at the rear. The hydraulic power steering provided light and easy steering input. Tire size was typically 195/65 R15, offering a good compromise between comfort and grip.
Market Reception & Comparison
The Bora Variant 1.9 TDI was well-received in Europe as a practical and economical family car. Critics praised its fuel efficiency, spacious interior, and comfortable ride. Compared to the gasoline-powered Bora variants, the 1.9 TDI offered significantly better fuel economy and more torque. However, it was generally considered less refined and slightly noisier than its petrol counterparts. Against competitors like the Ford Focus Estate and Opel/Vauxhall Astra Estate, the Bora Variant offered a similar level of practicality and fuel efficiency, but often with a slightly more premium feel.
Legacy
The 1.9 TDI engine, in various iterations, became renowned for its durability and reliability. The Bora Variant 1.9 TDI, while not a high-performance model, has proven to be a long-lasting and dependable vehicle. In the used car market today, these models are often sought after by those looking for an affordable, fuel-efficient, and practical station wagon. However, potential buyers should be aware of the age-related issues common to older vehicles, such as wear and tear on suspension components and potential issues with the turbocharger. Proper maintenance and regular servicing are crucial to ensuring the continued reliability of these vehicles.
