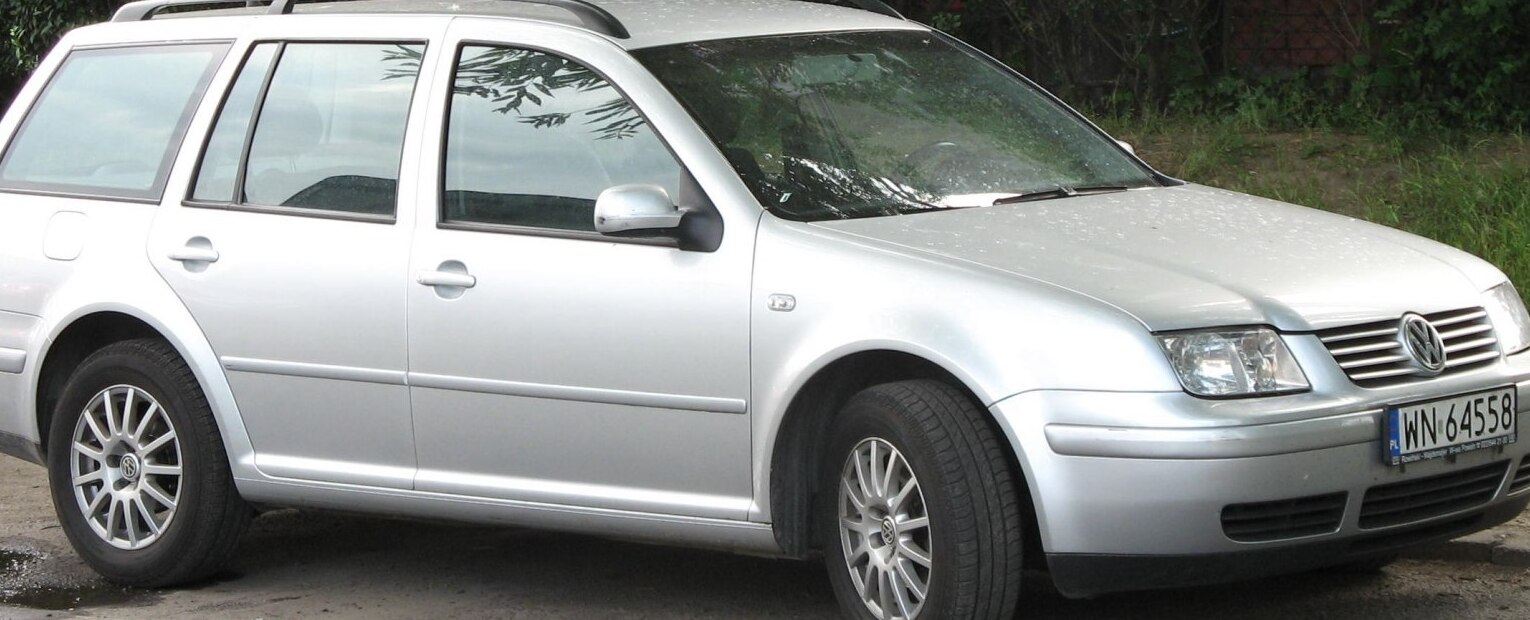

The Volkswagen Bora Variant 1.9 TDI (150 hp) was produced between 2000 and 2005 as part of the first generation (1J) Bora series. The Bora, essentially a European rebadging of the Jetta, was designed to bridge the gap between the Golf and the Passat in Volkswagen’s model range. The Variant (wagon) body style offered increased practicality, making it a popular choice for families and those requiring additional cargo space. This 150 horsepower TDI version, equipped with a six-speed manual transmission, was positioned as a strong all-rounder, offering a compelling blend of performance, fuel efficiency, and everyday usability. It was a key offering in markets where diesel engines were favored, particularly in Europe.
Technical Specifications
| Brand | Volkswagen |
| Model | Bora |
| Generation | Bora Variant (1J6) |
| Type (Engine) | 1.9 TDI (150 Hp) |
| Start of production | 2000 |
| End of production | 2005 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Station wagon (estate) |
| Seats | 5 |
| Doors | 5 |
| Fuel consumption (urban) | 7.2 l/100 km (32.7 US mpg) |
| Fuel consumption (extra urban) | 4.4 l/100 km (53.5 US mpg) |
| Fuel consumption (combined) | 5.4 l/100 km (43.6 US mpg) |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 9.2 sec |
| Acceleration 0 – 62 mph | 9.2 sec |
| Acceleration 0 – 60 mph | 8.7 sec |
| Maximum speed | 216 km/h (134.22 mph) |
| Weight-to-power ratio | 9.3 kg/Hp |
| Weight-to-torque ratio | 4.4 kg/Nm |
| Power | 150 Hp @ 4000 rpm |
| Torque | 320 Nm @ 1900 rpm (236.02 lb.-ft. @ 1900 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | ARL |
| Engine displacement | 1896 cm3 (115.7 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 79.5 mm (3.13 in.) |
| Piston Stroke | 95.5 mm (3.76 in.) |
| Compression ratio | 18.5:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Pump-nozzle (Unit Injector) |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | OHC |
| Engine oil capacity | 4.5 l (4.76 US qt | 3.96 UK qt) |
| Coolant capacity | 6 l (6.34 US qt | 5.28 UK qt) |
| Kerb Weight | 1400 kg (3086.47 lbs.) |
| Max. weight | 1920 kg (4232.88 lbs.) |
| Max load | 520 kg (1146.4 lbs.) |
| Trunk (boot) space – minimum | 460 l (16.24 cu. ft.) |
| Trunk (boot) space – maximum | 1470 l (51.91 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Length | 4409 mm (173.58 in.) |
| Width | 1735 mm (68.31 in.) |
| Height | 1485 mm (58.46 in.) |
| Wheelbase | 2515 mm (99.02 in.) |
| Front track | 1513 mm (59.57 in.) |
| Rear track | 1494 mm (58.82 in.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears | 6 |
| Gearbox type | Manual transmission |
| Front suspension | Independent, McPherson with coil spring and anti-roll bar |
| Rear suspension | Semi-independent, coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic |
| Tires size | 205/55 R16 |
| Wheel rims size | 16 |
Powertrain & Engine Architecture
The heart of the Bora Variant 1.9 TDI was the ARL engine code, a 1.9-liter inline-four cylinder diesel engine. This engine was a member of Volkswagen’s well-regarded TDI (Turbocharged Direct Injection) family. The ARL featured a pump-nozzle (unit injector) fuel injection system, a technology that allowed for precise fuel delivery and contributed to the engine’s efficiency and power output. The engine utilized an overhead camshaft (OHC) valvetrain with two valves per cylinder. A turbocharger with an intercooler further enhanced performance by forcing more air into the cylinders. The six-speed manual transmission provided well-spaced gear ratios, optimizing both acceleration and fuel economy. The gearbox was known for its robust construction and smooth shifting action.
Driving Characteristics
The 150 hp 1.9 TDI engine delivered a respectable level of performance for a diesel-powered wagon. While not overtly sporty, it provided ample torque – 320 Nm (236 lb-ft) – from low engine speeds, making it easy to accelerate and maintain highway speeds even when fully loaded. The six-speed manual transmission allowed drivers to keep the engine in its optimal power band. Compared to the lower-powered 90 hp TDI variants, the 150 hp version offered significantly improved acceleration and overall responsiveness. It also felt less strained when climbing hills or carrying a heavy load. Compared to the gasoline-powered Bora variants, the TDI offered superior fuel economy and a more relaxed driving experience, albeit with slightly more engine noise and vibration.
Equipment & Trim Levels
The Bora Variant 1.9 TDI (150 hp) typically came with a reasonably well-equipped standard specification. This included power windows, central locking, power mirrors, and an air conditioning system. Interior upholstery was generally cloth, although leather options were available. Dashboard configuration was typical of the Mk4 Golf/Bora, with a functional and straightforward layout. Optional extras included alloy wheels, a sunroof, a CD stereo system, and upgraded interior trim. Higher trim levels, such as the ‘Highline’, added features like automatic climate control, heated seats, and more luxurious interior appointments.
Chassis & Braking
The Bora Variant’s chassis featured an independent McPherson strut suspension at the front and a semi-independent coil spring suspension at the rear. This setup provided a comfortable ride quality while maintaining reasonable handling characteristics. The front brakes were ventilated discs, offering good stopping power, while the rear brakes were solid discs. Anti-lock Braking System (ABS) was standard, enhancing safety. Stabilizer bars were fitted to both the front and rear axles to reduce body roll during cornering. The suspension was tuned to prioritize comfort and practicality, rather than outright sportiness.
Market Reception & Comparison
The Bora Variant 1.9 TDI (150 hp) was generally well-received by automotive critics. It was praised for its fuel efficiency, strong torque output, and spacious interior. The combination of a diesel engine and a wagon body style was particularly appealing to European buyers. Compared to the 90 hp TDI version, the 150 hp model offered a noticeable performance improvement, making it a more versatile and enjoyable vehicle to drive. Fuel economy remained excellent, even with the increased power. Compared to gasoline-powered Bora variants, the TDI offered significantly better fuel economy, but typically came with a higher purchase price.
Legacy
The ARL 1.9 TDI engine has proven to be remarkably durable and reliable over the long term, provided it has been properly maintained. Many examples of the Bora Variant 1.9 TDI are still on the road today, testament to the engine’s robust construction. On the used car market, these vehicles are often sought after for their fuel efficiency and practicality. However, potential buyers should be aware of the possibility of wear and tear on components such as the turbocharger and fuel injectors. Regular servicing and preventative maintenance are crucial to ensuring the continued reliability of this powertrain. The Bora Variant 1.9 TDI remains a popular choice for those seeking a practical, economical, and reliable wagon.
