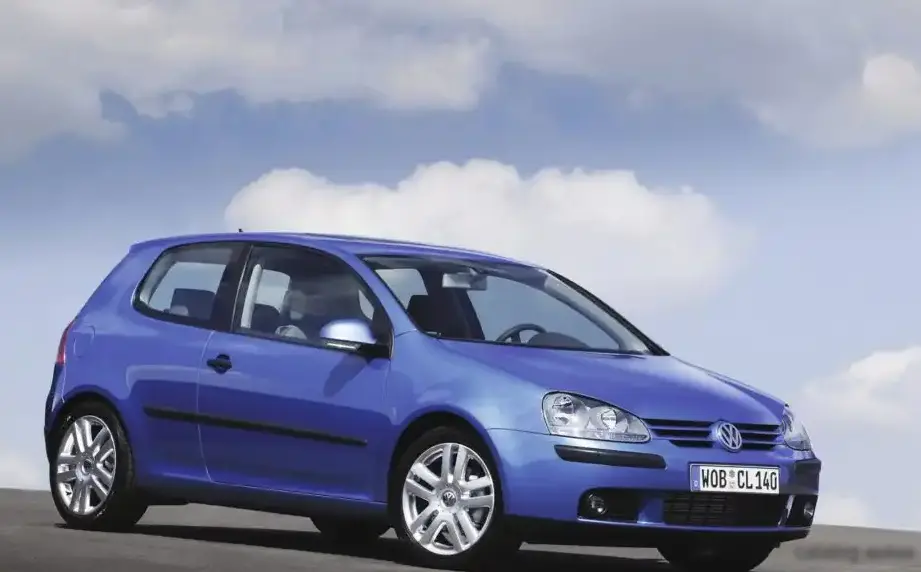

The Volkswagen Golf V, produced from 2003 to 2009, represented a significant evolution for Volkswagen’s iconic hatchback. The 3-door variant, introduced as a more sporty and youthful option, offered a range of engines and trim levels. Among these, the 2.0 FSI (150 hp) Automatic, manufactured between 2004 and 2008, occupied a mid-range position in the lineup, appealing to buyers seeking a balance of performance and convenience. This model was a key component of the Golf Mk5’s success in the European market, offering a more refined driving experience compared to its predecessors.
Technical Specifications
| Brand | Volkswagen |
| Model | Golf |
| Generation | Golf V (3-door) |
| Type (Engine) | 2.0 FSI (150 Hp) Automatic |
| Start of production | 2004 |
| End of production | 2008 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Hatchback |
| Seats | 5 |
| Doors | 3 |
| Fuel consumption (urban) | 11.7-12 l/100 km (20.1 – 19.6 US mpg) |
| Fuel consumption (extra urban) | 6.3-6.6 l/100 km (37.3 – 35.6 US mpg) |
| Fuel consumption (combined) | 8.3-8.6 l/100 km (28.3 – 27.4 US mpg) |
| CO2 emissions | 199-206 g/km |
| Fuel Type | Petrol (Gasoline) |
| Acceleration 0 – 100 km/h | 9.5 sec |
| Acceleration 0 – 62 mph | 9.5 sec |
| Acceleration 0 – 60 mph | 9 sec |
| Maximum speed | 205 km/h (127.38 mph) |
| Emission standard | Euro 4 |
| Weight-to-power ratio | 8.5 kg/Hp |
| Weight-to-torque ratio | 6.4 kg/Nm |
| Power | 150 Hp @ 6000 rpm |
| Torque | 200 Nm @ 3500 rpm (147.51 lb.-ft. @ 3500 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | AXW, BLR, BLX, BLY, BVX, BVY, BVZ |
| Engine displacement | 1984 cm3 (121.07 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 82.5 mm (3.25 in.) |
| Piston Stroke | 92.8 mm (3.65 in.) |
| Compression ratio | 11.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Direct injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | DOHC |
| Engine oil capacity | 4.6 l (4.86 US qt | 4.05 UK qt) |
| Coolant capacity | 8 l (8.45 US qt | 7.04 UK qt) |
| Kerb Weight | 1277-1427 kg (2815.3 – 3146 lbs.) |
| Max. weight | 1840 kg (4056.51 lbs.) |
| Max load | 413-563 kg (910.51 – 1241.2 lbs.) |
| Trunk (boot) space – minimum | 350 l (12.36 cu. ft.) |
| Trunk (boot) space – maximum | 1305 l (46.09 cu. ft.) |
| Fuel tank capacity | 55 l (14.53 US gal | 12.1 UK gal) |
| Max. roof load | 75 kg (165.35 lbs.) |
| Permitted trailer load with brakes (8%) | 1700 kg (3747.86 lbs.) |
| Permitted trailer load with brakes (12%) | 1400 kg (3086.47 lbs.) |
| Permitted trailer load without brakes | 670 kg (1477.1 lbs.) |
| Permitted towbar download | 75 kg (165.35 lbs.) |
| Length | 4204 mm (165.51 in.) |
| Width | 1759 mm (69.25 in.) |
| Width including mirrors | 2010 mm (79.13 in.) |
| Height | 1485 mm (58.46 in.) |
| Wheelbase | 2578 mm (101.5 in.) |
| Front track | 1539 mm (60.59 in.) |
| Rear track | 1528 mm (60.16 in.) |
| Front overhang | 880 mm (34.65 in.) |
| Rear overhang | 746 mm (29.37 in.) |
| Minimum turning circle | 10.9 m (35.76 ft.) |
| Drivetrain Architecture | Front wheel drive |
| Number of gears and type of gearbox | 6 gears, automatic transmission |
| Front suspension | Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension | Independent multi-link spring suspension with stabilizer |
| Front brakes | Ventilated discs |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Electric Steering |
| Tires size | 195/65 R15; 205/55 R16; 225/45 R17 |
| Wheel rims size | 6.5J x 15; 6.5J x 16; 7J x 17 |
INTRODUCTION
The Volkswagen Golf V 2.0 FSI Automatic, launched in 2004, was a key variant within the fifth-generation Golf range. Built on the A5 platform (also known as the 1HX0/A3 platform), it aimed to provide a more sophisticated and comfortable driving experience than the base models. The 2.0 FSI engine, coupled with a six-speed automatic transmission, positioned this trim as a popular choice for drivers prioritizing ease of use and respectable performance. It was marketed towards families and commuters who desired a well-equipped and reliable hatchback.
Powertrain & Engine Architecture
The heart of this Golf variant is the 2.0-liter inline-four cylinder engine, designated with engine codes such as AXW, BLR, BLX, BLY, BVX, BVY, and BVZ. The “FSI” designation stands for Fuel Stratified Injection, a direct injection system developed by Volkswagen. This system injects fuel directly into the combustion chamber, allowing for more precise fuel control, improved combustion efficiency, and increased power output compared to traditional multi-point injection. The engine features a double overhead camshaft (DOHC) valvetrain with four valves per cylinder, further enhancing its breathing and performance. The six-speed automatic transmission, typically the 6F24A, was chosen for its smooth shifting and ability to efficiently manage the engine’s power. This transmission featured a torque converter and electronic control for optimized gear selection.
Driving Characteristics
The 2.0 FSI Automatic offered a noticeable step up in performance compared to the lower-displacement engines available in the Golf V range. While not as sporty as the GTI or R32 models, the 150 hp engine provided adequate power for everyday driving and overtaking maneuvers. The automatic transmission, while convenient, did result in a slight reduction in acceleration compared to the manual transmission versions. Gear ratios were tuned for a balance of fuel efficiency and responsiveness. In real-world conditions, the car felt comfortable and composed on the highway, with sufficient power for merging and maintaining speed. The automatic transmission sometimes exhibited a slight hesitation during downshifts, but overall provided a smooth and refined driving experience.
Equipment & Trim Levels
The 2.0 FSI Automatic typically came equipped with a respectable level of standard features. These included air conditioning, power windows, power mirrors, a CD stereo system, and alloy wheels. Higher trim levels offered options such as leather upholstery, a sunroof, automatic climate control, and a premium sound system. Interior upholstery was generally cloth, with optional leather upgrades available. The dashboard layout was functional and well-designed, with clear instrumentation and intuitive controls. Safety features included ABS brakes, front airbags, and side airbags.
Chassis & Braking
The Golf V 2.0 FSI Automatic utilized an independent McPherson strut suspension at the front and an independent multi-link suspension at the rear. This setup provided a comfortable ride and good handling characteristics. Stabilizer bars were fitted to both axles to reduce body roll during cornering. Braking duties were handled by ventilated discs at the front and solid discs at the rear, providing adequate stopping power for the vehicle’s weight and performance. ABS (Anti-lock Braking System) was standard, enhancing safety and control during emergency braking situations.
Market Reception & Comparison
The Golf V 2.0 FSI Automatic was generally well-received by automotive critics. It was praised for its refined engine, comfortable ride, and well-equipped interior. However, some critics noted that the automatic transmission could feel slightly sluggish at times. Compared to the 1.6-liter and 1.4-liter models, the 2.0 FSI offered significantly more power and a more enjoyable driving experience. Compared to the diesel variants (like the 1.9 TDI), the 2.0 FSI offered a smoother and quieter engine, but at the expense of fuel economy. The 2.0 FSI was also more affordable than the high-performance GTI model, making it a more accessible option for a wider range of buyers.
Legacy
The 2.0 FSI engine, while generally reliable, has been known to exhibit some issues with carbon buildup on the intake valves over time, particularly if not regularly serviced with quality fuel. The automatic transmission, if properly maintained with regular fluid changes, is generally considered durable. Today, the Golf V 2.0 FSI Automatic represents a solid and affordable used car option. Its combination of practicality, comfort, and reasonable performance continues to appeal to buyers seeking a well-rounded hatchback. Parts availability is generally good, and the Golf V’s reputation for reliability ensures that well-maintained examples can provide many years of trouble-free service.
