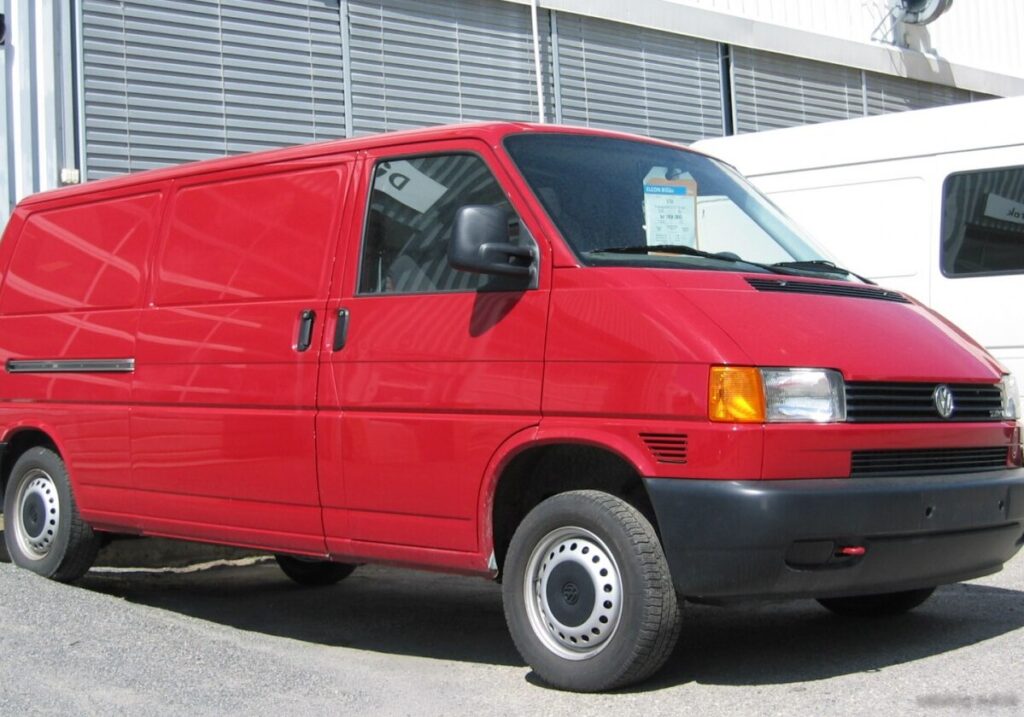

The Volkswagen Transporter (T4), particularly the facelifted version introduced in 1996, represented a significant evolution in the popular van lineage. The 2.0 (84 hp) L2H1 Panel Van configuration, produced from 1996 to 2003, occupied a crucial position in the T4 range, offering a balance between affordability, practicality, and reasonable performance for commercial and personal use. The “L2H1” designation refers to the vehicle’s body length (L2 – long wheelbase) and roof height (H1 – standard roof). This variant was primarily aimed at businesses and tradespeople requiring a versatile cargo carrier, but also found favor with those seeking a camper van base or a spacious vehicle for leisure activities.
Technical Specifications
| Brand | Volkswagen |
| Model | Transporter |
| Generation | Transporter (T4, facelift 1996) Panel Van |
| Type (Engine) | 2.0 (84 Hp) L2H1 |
| Start of production | 1996 |
| End of production | 2003 |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Van |
| Seats | 2 |
| Doors | 4-5 |
| Fuel consumption (combined) | 13.5 l/100 km (17.4 US mpg, 20.9 UK mpg, 7.4 km/l) |
| Fuel Type | Petrol (Gasoline) |
| Maximum speed | 144 km/h (89.48 mph) |
| Weight-to-power ratio | 19.4 kg/Hp, 51.5 Hp/tonne |
| Weight-to-torque ratio | 10.3 kg/Nm, 97.5 Nm/tonne |
| Power | 84 Hp @ 4300 rpm |
| Power per litre | 42.7 Hp/l |
| Torque | 159 Nm @ 2200 rpm (117.27 lb.-ft. @ 2200 rpm) |
| Engine layout | Front, Transverse |
| Engine Model/Code | AAC |
| Engine displacement | 1968 cm3 (120.09 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm (3.19 in.) |
| Piston Stroke | 95.5 mm (3.76 in.) |
| Compression ratio | 8.5:1 |
| Number of valves per cylinder | 2 |
| Fuel injection system | Multi-port manifold injection |
| Engine aspiration | Naturally aspirated engine |
| Valvetrain | SOHC |
| Engine oil capacity | 5 l (5.28 US qt | 4.4 UK qt) |
| Coolant | 9 l (9.51 US qt | 7.92 UK qt) |
| Kerb Weight | 1630 kg (3593.53 lbs.) |
| Max. weight | 2625-2800 kg (5787.13 – 6172.94 lbs.) |
| Max load | 995-1170 kg (2193.6 – 2579.41 lbs.) |
| Trunk (boot) space – maximum | 6300 l (222.48 cu. ft.) |
| Fuel tank capacity | 80 l (21.13 US gal | 17.6 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 2000 kg (4409.25 lbs.) |
| Permitted trailer load without brakes | 700 kg (1543.24 lbs.) |
| Permitted towbar download | 100 kg (220.46 lbs.) |
| Length | 5107 mm (201.06 in.) |
| Width | 1840 mm (72.44 in.) |
| Width including mirrors | 2175 mm (85.63 in.) |
| Height | 1940 mm (76.38 in.) |
| Wheelbase | 3320 mm (130.71 in.) |
| Front track | 1589 mm (62.56 in.) |
| Rear (Back) track | 1554 mm (61.18 in.) |
| Front overhang | 886 mm (34.88 in.) |
| Rear overhang | 901 mm (35.47 in.) |
| Ride height (ground clearance) | 180 mm (7.09 in.) |
| Minimum turning circle (turning diameter) | 12.9 m (42.32 ft.) |
| Wading depth | 350 mm (13.78 in.) |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the front wheels of the vehicle. |
| Drive wheel | Front wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Independent torsion bar, double wishbone, Transverse stabilizer |
| Rear suspension | Independent coil spring, Trailing arm |
| Front brakes | Disc |
| Rear brakes | Disc |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 195/70 R15; 205/65 R15 |
| Wheel rims size | 6J x 15 |
Powertrain & Engine Architecture
The 2.0-liter, inline four-cylinder engine, designated AAC, was a mainstay of the T4 Transporter lineup. This engine featured a single overhead camshaft (SOHC) valvetrain operating two valves per cylinder. Fuel delivery was handled by a multi-port fuel injection system, providing a balance between efficiency and performance. The 84 horsepower output at 4300 rpm and 159 Nm (117.27 lb-ft) of torque at 2200 rpm were considered adequate for typical commercial duties, but not particularly sporty. The engine’s relatively simple design contributed to its robustness and ease of maintenance. The engine was transversely mounted, driving the front wheels. The standard transmission for this variant was a five-speed manual, although a four-speed automatic transmission was also available, albeit less common. The automatic transmission, while offering convenience, did impact fuel economy and performance.
Driving Characteristics
The 2.0-liter 84 hp engine with the manual transmission provided acceptable, if not exhilarating, performance. Acceleration was modest, and overtaking required careful planning. The automatic transmission further dulled performance, with noticeable delays in downshifting and a tendency to “hunt” for gears on inclines. The gear ratios were geared towards fuel efficiency rather than outright speed. The T4’s suspension, featuring independent torsion bar front suspension and a trailing arm rear setup, provided a reasonably comfortable ride, even when laden with cargo. However, the van’s high center of gravity and relatively soft suspension meant that it wasn’t particularly adept at handling sharp corners.
Equipment & Trim Levels
The 2.0 L2H1 Panel Van typically came with a fairly basic level of equipment, reflecting its commercial focus. Standard features included power steering, central locking, and a driver’s airbag. The interior was functional and durable, with hard-wearing plastic trim and cloth upholstery. Optional extras included air conditioning, electric windows, and a radio/cassette player. Higher trim levels, though rare on the base panel van, could add features like upgraded upholstery and additional sound insulation. The emphasis was on practicality and durability rather than luxury.
Chassis & Braking
The T4 Transporter utilized a monocoque chassis construction, providing a good balance between strength and weight. The front suspension employed independent torsion bars and double wishbones, while the rear suspension featured independent coil springs and trailing arms. Braking was initially disc all around, although some earlier models had rear drum brakes. Anti-lock Braking System (ABS) was standard, enhancing safety, particularly in slippery conditions. The steering was rack and pinion, providing reasonably precise control.
Market Reception & Comparison
The 2.0-liter 84 hp T4 Panel Van was generally well-received as a practical and reliable workhorse. Critics acknowledged its affordability and versatility, but noted its lack of outright performance. Compared to the more powerful 2.5-liter TDI diesel variants, the 2.0 gasoline engine offered less torque and lower fuel economy. However, the gasoline engine was generally smoother and quieter. Against the 1.9 TDI diesel, the 2.0 petrol offered a lower purchase price but significantly higher running costs due to fuel consumption and potential maintenance. The automatic transmission version was often criticized for its sluggishness and reduced fuel efficiency.
Legacy
The Volkswagen T4 Transporter, including the 2.0 (84 hp) L2H1 variant, has proven to be a remarkably durable vehicle. Many examples are still on the road today, testament to their robust construction and relatively simple mechanicals. The AAC engine, while not known for its blistering performance, is generally reliable if properly maintained. The availability of spare parts remains good, making these vans relatively easy to keep running. In the used car market, the 2.0-liter petrol versions are typically more affordable than the diesel models, making them an attractive option for budget-conscious buyers seeking a versatile and dependable van. However, potential buyers should be aware of the higher fuel consumption and potential for increased maintenance costs compared to the diesel alternatives.
