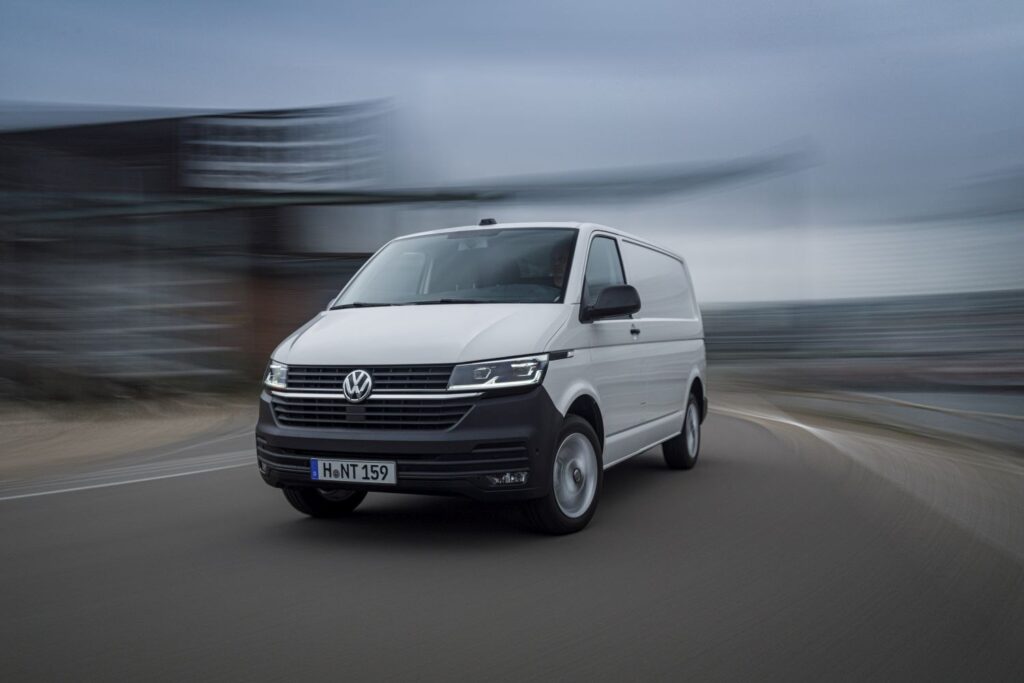

The Volkswagen Transporter, specifically the T6.1 generation facelifted in 2019, represents a continuation of a lineage stretching back to the iconic Type 2 “Bus.” This iteration of the Transporter, a panel van configuration with the 2.0 TDI 150 horsepower engine and 4MOTION all-wheel drive (designated L2H1), was primarily marketed in Europe and other international markets. While not officially sold in the United States, the Transporter holds a significant position as a versatile commercial vehicle, popular among tradespeople, camper van converters, and those requiring a practical and reliable workhorse. The T6.1 brought refinements to the T6, including updated styling, enhanced technology, and improved efficiency, solidifying its place as a leading van in its segment.
Volkswagen Transporter T6.1: Overview
The T6.1 generation, introduced as a facelift to the T6, focused on bringing the Transporter into compliance with stricter Euro 6 emissions standards and incorporating modern technology. The “T6.1” designation signifies a substantial update rather than a complete redesign. Production of this specific 2.0 TDI 4MOTION L2H1 variant ran from 2021 to 2022. The L2H1 designation refers to the van’s body length (L2 – long wheelbase) and roof height (H1 – standard roof). This model caters to businesses and individuals needing a balance between cargo capacity, maneuverability, and all-weather capability thanks to the 4MOTION system.
Engine & Performance
Powering the T6.1 Panel Van is a 2.0-liter turbocharged diesel engine (EA288MAR / DNAA code), producing 150 horsepower at 3250-3750 rpm and 340 Nm (250.77 lb.-ft.) of torque between 1500-3000 rpm. This engine utilizes a diesel commonrail fuel injection system and features a turbocharger with an intercooler for optimized performance. The engine’s transverse mounting and inline-four configuration contribute to a relatively compact engine bay. The 6-speed manual transmission delivers power to all four wheels via Volkswagen’s 4MOTION all-wheel-drive system. This system operates with a permanent front-wheel drive bias, engaging the rear wheels as needed through an electronically controlled clutch for enhanced traction. Acceleration from 0 to 100 km/h (0-62 mph) takes 11.3 seconds, while 0-60 mph is achieved in 10.7 seconds. The van has a maximum speed of 180 km/h (111.85 mph). Fuel economy figures, measured using the NEDC and WLTP equivalent standards, range from 6.8 to 7.3 l/100 km (34.6-32.2 US mpg) combined, with CO2 emissions between 179-192 g/km.
Design & Features
The Volkswagen Transporter T6.1 Panel Van is a traditional, boxy van designed for practicality and maximizing cargo space. It features a 4-5 door configuration and offers seating for 2-3 occupants. The L2H1 body style provides a generous cargo volume of 6700 liters (236.61 cu. ft.). Key design elements include a robust front end, practical side sliding doors for easy access, and a rear door configuration optimized for loading and unloading. The T6.1 incorporates modern safety features such as ABS (Anti-lock Braking System). The interior is functional and durable, designed to withstand the rigors of commercial use. The vehicle’s dimensions are: Length 5304 mm (208.82 in), Width 1904 mm (74.96 in) including mirrors 2297 mm (90.43 in), Height 1990 mm (78.35 in), and Wheelbase 3400 mm (133.86 in). Ground clearance is 202 mm (7.95 in). The van boasts a kerb weight ranging from 2016-2342 kg (4444.52 – 5163.23 lbs) and a maximum permissible weight of 2800-3200 kg (6172.94 – 7054.79 lbs).
Technical Specifications
| Brand | Volkswagen |
| Model | Transporter |
| Generation | Transporter (T6.1, facelift 2019) Panel Van |
| Type (Engine) | 2.0 TDI (150 Hp) 4MOTION L2H1 |
| Start of production | 2021 year |
| End of production | 2022 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | Van |
| Seats | 2-3 |
| Doors | 4-5 |
| Fuel consumption (economy) – urban | 8.1-8.3 l/100 km (29 – 28.3 US mpg) |
| Fuel consumption (economy) – extra urban | 6-6.6 l/100 km (39.2 – 35.6 US mpg) |
| Fuel consumption (economy) – combined | 6.8-7.3 l/100 km (34.6 – 32.2 US mpg) |
| CO2 emissions | 179-192 g/km |
| Fuel Type | Diesel |
| Acceleration 0 – 100 km/h | 11.3 sec |
| Acceleration 0 – 62 mph | 11.3 sec |
| Acceleration 0 – 60 mph | 10.7 sec |
| Maximum speed | 180 km/h (111.85 mph) |
| Emission standard | Euro 6d-ISC-FCM |
| Weight-to-power ratio | 13.4 kg/Hp |
| Weight-to-torque ratio | 5.9 kg/Nm |
| Power | 150 Hp @ 3250-3750 rpm |
| Torque | 340 Nm @ 1500-3000 rpm (250.77 lb.-ft.) |
| Engine layout | Front, Transverse |
| Engine Model/Code | EA288MAR / DNAA |
| Engine displacement | 1968 cm3 (120.09 cu. in.) |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 81 mm (3.19 in.) |
| Piston Stroke | 95.5 mm (3.76 in.) |
| Compression ratio | 15.5:1 |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger, Intercooler |
| Valvetrain | DOHC |
| Engine oil capacity | 7.4 l (7.82 US qt | 6.51 UK qt) |
| Kerb Weight | 2016-2342 kg (4444.52 – 5163.23 lbs.) |
| Max. weight | 2800-3200 kg (6172.94 – 7054.79 lbs.) |
| Max load | 784-858 kg (1728.42 – 1891.57 lbs.) |
| Trunk (boot) space – maximum | 6700 l (236.61 cu. ft.) |
| Fuel tank capacity | 70 l (18.49 US gal | 15.4 UK gal) |
| AdBlue tank | 22 l (5.81 US gal | 4.84 UK gal) |
| Max. roof load | 100 kg (220.46 lbs.) |
| Permitted trailer load with brakes (12%) | 2500 kg (5511.56 lbs.) |
| Permitted trailer load without brakes | 750 kg (1653.47 lbs.) |
| Permitted towbar download | 100 kg (220.46 lbs.) |
| Length | 5304 mm (208.82 in.) |
| Width | 1904 mm (74.96 in.) |
| Width including mirrors | 2297 mm (90.43 in.) |
| Height | 1990 mm (78.35 in.) |
| Wheelbase | 3400 mm (133.86 in.) |
| Minimum turning circle | 13.2 m (43.31 ft.) |
| Drivetrain Architecture | All wheel drive (4×4). ICE drives front wheels, rear wheels engaged via clutch. |
| Number of gears and type of gearbox | 6 gears, manual transmission |
The Volkswagen Transporter T6.1 continues to be a popular choice for commercial and recreational use, offering a blend of practicality, reliability, and modern features. Its 4MOTION all-wheel-drive system and efficient diesel engine make it a capable and versatile vehicle for a wide range of applications.
